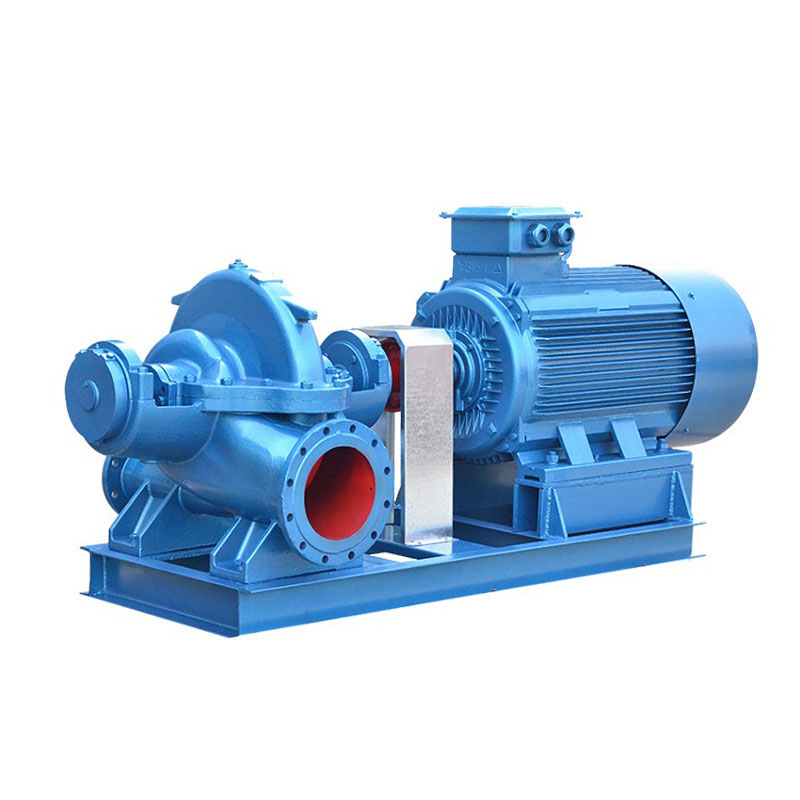

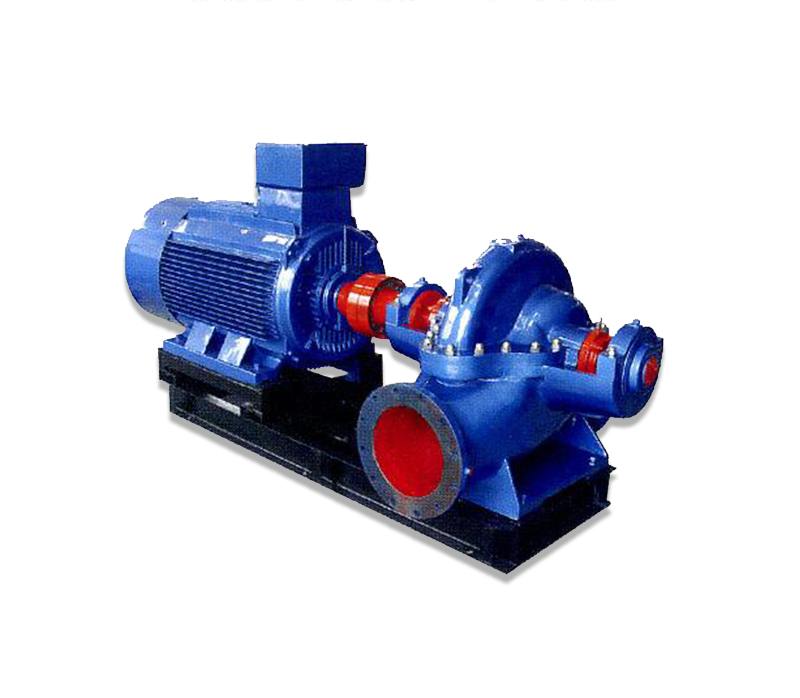

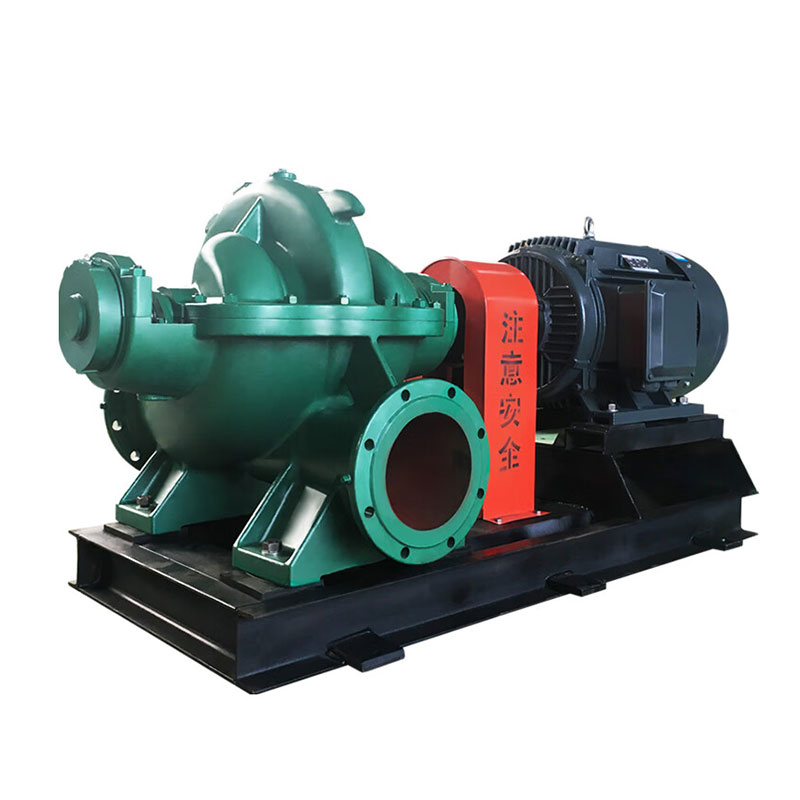

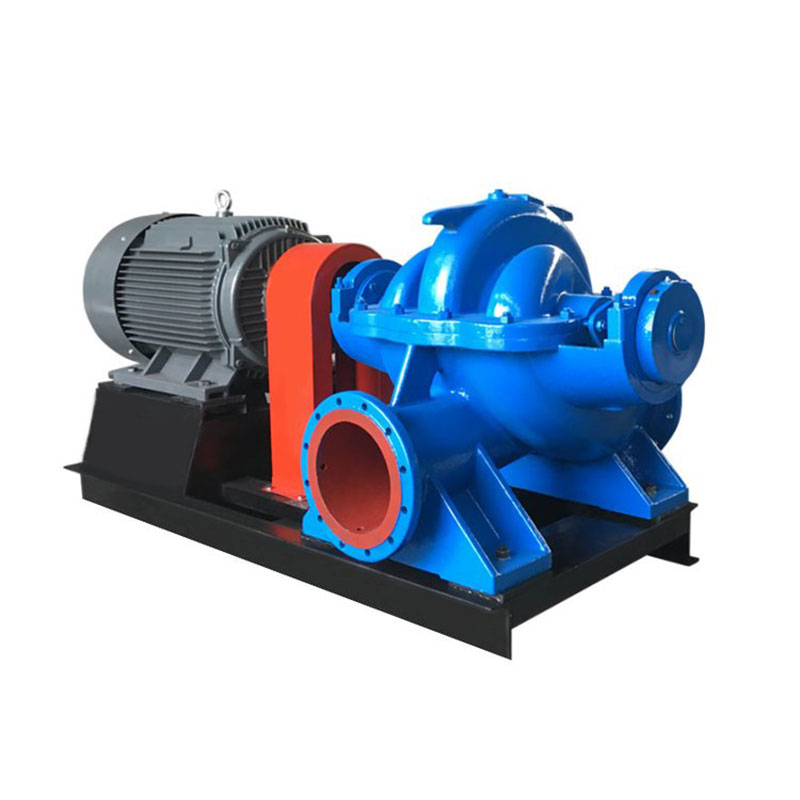

SH type pump is a single-stage, double suction, split centrifugal pump with pump casing, which is used for suction and delivery of clean water and liquids with physical and chemical properties similar to water. When the lift of this type of pump is 9 meters to 140 meters, the flow is 126 meters to 12500 meters 3/hour, and the maximum temperature of the liquid should not exceed 80 ℃, which is suitable for factories, mines, urban water supply, power stations, large water conservancy projects, farmland irrigation and waterlogging drainage. The 48SH -- 22 type large pump can also be used as a circulating pump for thermal power plants.
Meaning of pump model: e.g. 10SH -- 13A
10 The diameter of a suction port is divided by 25 (that is, the diameter of the suction port of the pump is 250 mm).
S. SH double suction single-stage horizontal centrifugal clean water pump
13 - The specific speed is divided by 10 (that is, the specific speed of the pump is 130)
A - indicates that the pump is replaced with impellers with different outer diameters.
