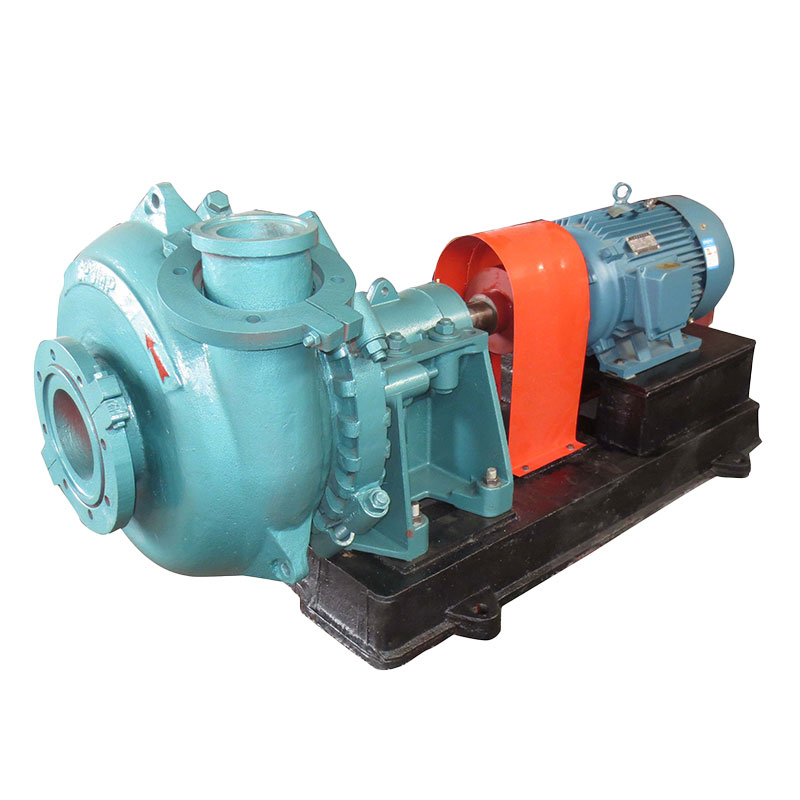

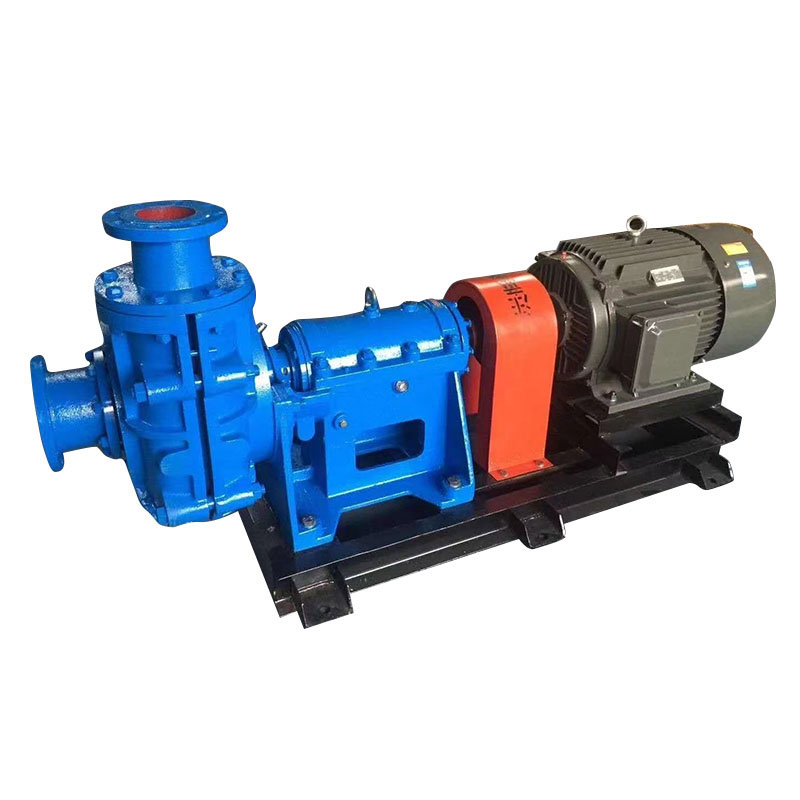

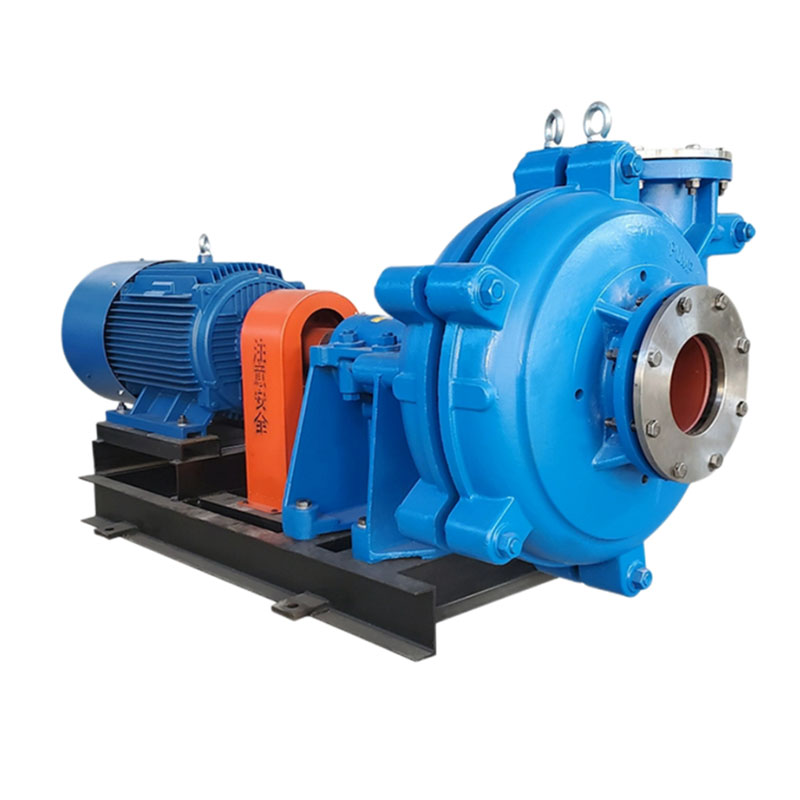

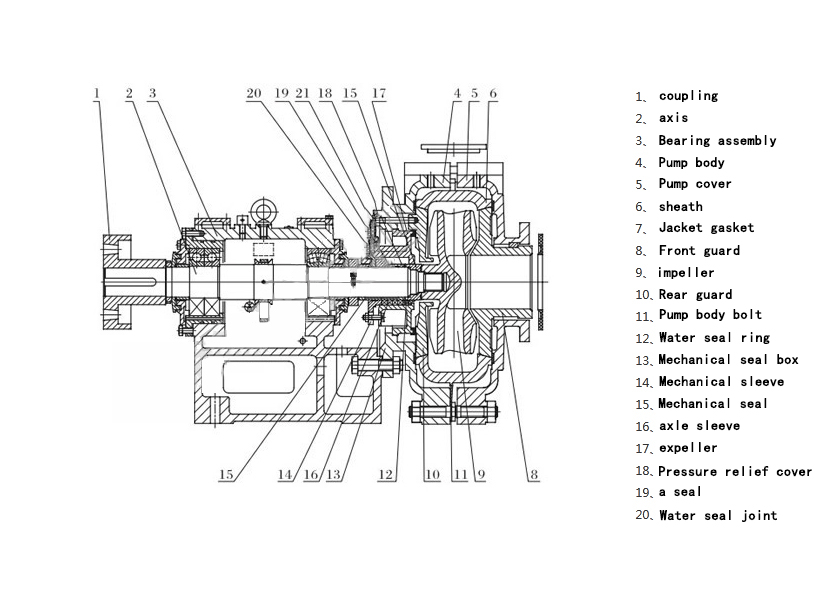

Slurry pump structure: HH high lift slurry pump is a cantilever, horizontal double shell axial suction centrifugal slurry pump. The discharge outlet of the pump can be installed at an interval of 45 ℃ and rotated at eight different angles.

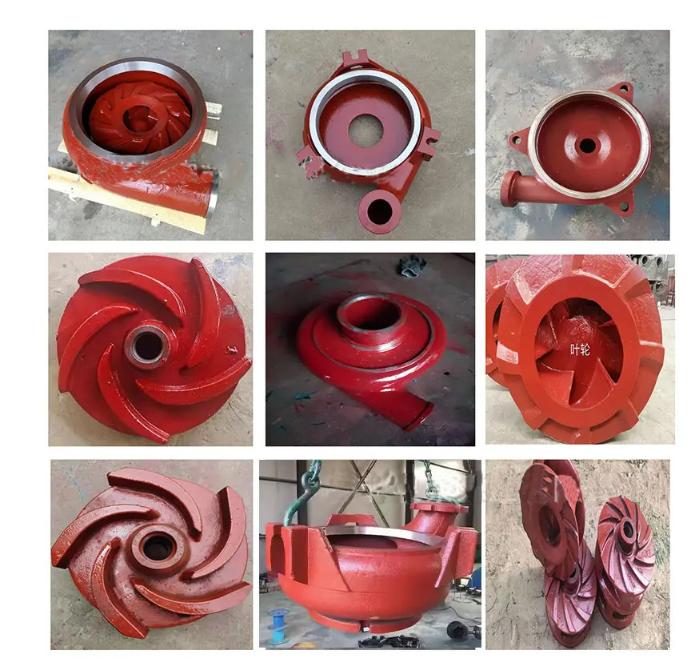

Material of slurry pump: The pump body of HH type slurry pump is equipped with replaceable wear-resistant metal lining, and flow passage parts such as impeller, sheath and guard plate are made of high chromium wear-resistant metal.
Use of slurry pump: in the area of small flow and low lift, it can transport strong abrasion slurry; Convey light abrasion slag slurry in high lift and large flow area. This type of pump is suitable for the transportation of strong abrasion and high concentration slag slurry in metallurgical, mining, coal, power, building materials and other industrial sectors. It can also be used in series with multiple stages.
Sealing type: packing seal, auxiliary impeller seal, packing plus auxiliary impeller seal, mechanical seal, etc.

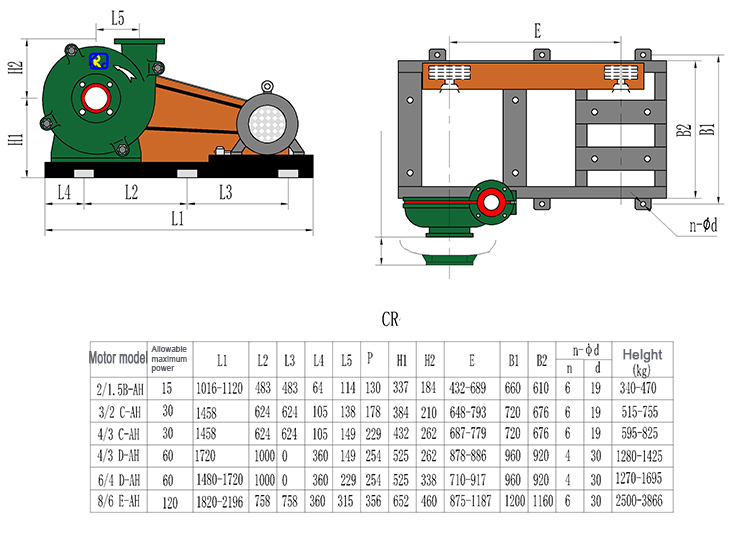

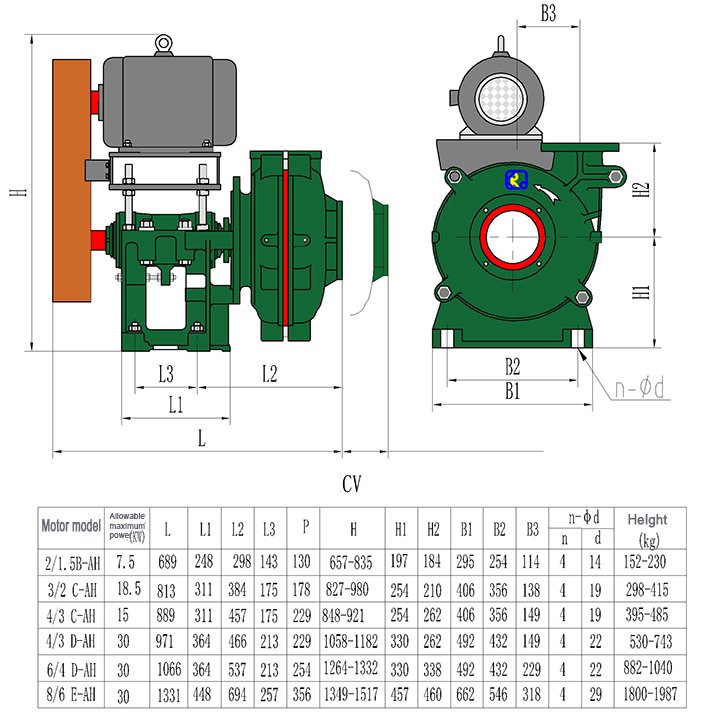

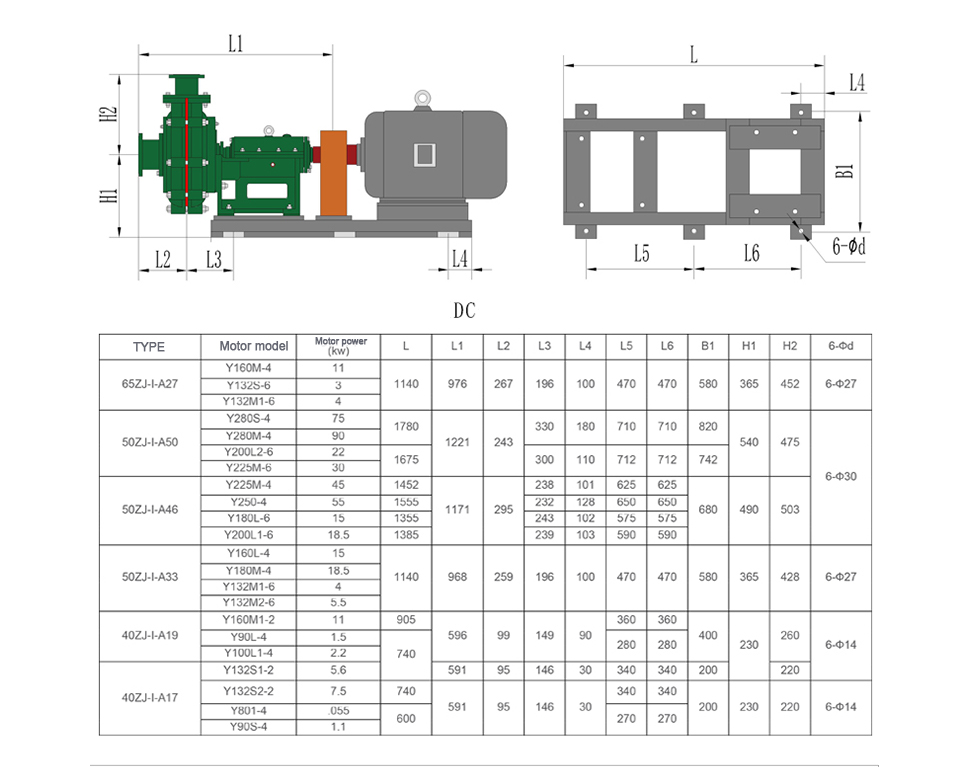

Transmission type: DC direct transmission, CR parallel belt transmission, ZVZ upper and lower belt transmission, CV vertical belt transmission, etc.
